anti-hail system

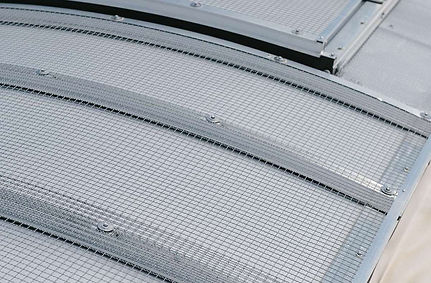

Hail protection system

Kotva 1
  • Protection against hail up to a diameter of 50 mm

  • Tested and rated Class 5 in hail resistance

  • Minimal effect on light transmission

Kotva 2

Fall-through protection

  • Certified fall protection

  • No obstructive perforated panels

  • Integrated fall protection

capture systems
Kotva 3
sunblock

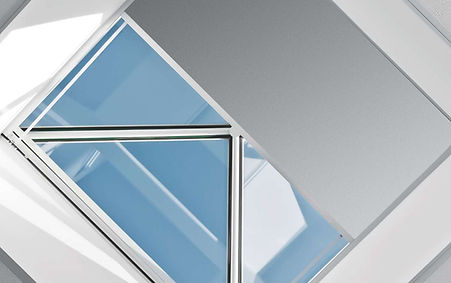

Sun protection

  • Integrated sun shades – for new and existing projects

  • Built-in shielding system

  • Smart control for a balanced climate in the room

Kotva 4

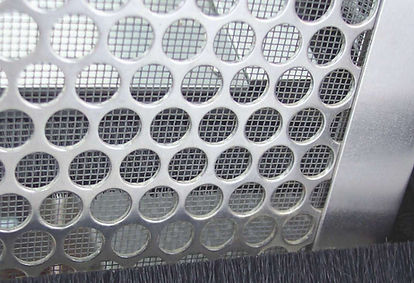

Protection against insects

  • Effective protection against insects - easy and quick installation.

  • Simple and quick retrofitting

  • Variable width

protection against insects
Kotva 5
control technology

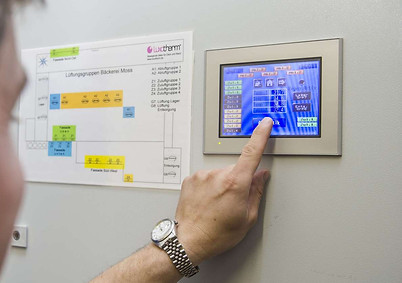

Control technology

  • Pneumatically operated (Co2) or electrically operated system (24V)

  • Easy maintenance and expansion of the unit

Kotva 6

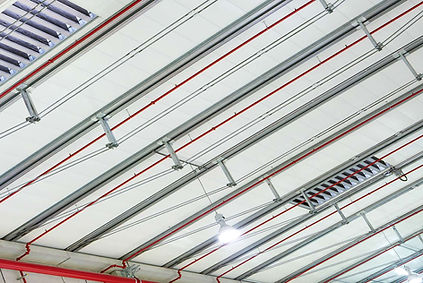

Sound traps

  • Sound insulation in accordance with regulations.

sound isolation
Kotva 7
smoke barriers

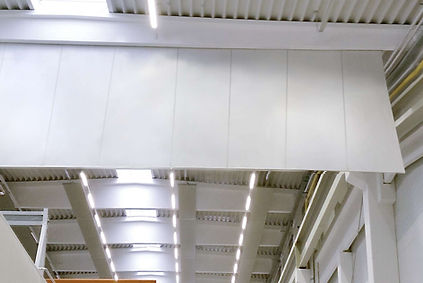

Smoke barriers

  • Non-smoking emergency and escape routes

  • Heat-resistant and flexible partitions

  • Preventive protection of the building to prevent the spread of smoke

Kotva 8

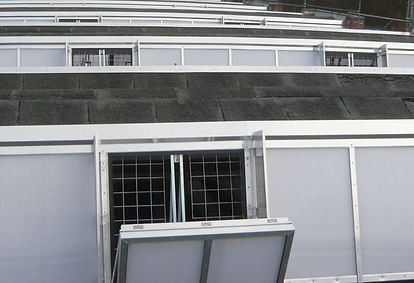

Hydra - vent / Hydra - star

  • Permanent ventilation, independent of the weather, protected against rain

  • USE: Removal of permanent heat loads that arise in production and other operations with large heat gains.

  • The Hydra-star Indu-Light labyrinth device is an ideal system for natural ventilation and heat removal from rooms with higher temperatures.

hydra star

HYDRA–STAR:

  • A system solution for draining falling rainwater using a three-level, partially overlapping, set of gutters on slats. Low weight of the device itself for minimal load on the roof (closable device weighs only 65 kg/m2, fixed labyrinths 57 kg/m2) With a maximum width of 4 m and essentially unlimited length of labyrinths, all customer requirements for venting technological heat can be met. The efficiency of the device is approx. Cv = 0.6.

  Ways of placement on the roof sheathing:

  As a standalone device on its own cuff

  Integrated into existing or new rooflights

  As a portable device for closing mounting holes.

HYDRA
HYDRA

+ regulatory technology

+ soundproof panels

  • Comfortable ventilation and heat removal at the push of a button, with pneumatic (CO2) or electric (24/230V) control.



  • Installation under the ventilation system

Download document: Technical parameters_HYDRA.pdf
